AB CryptoBox 600HD mini

Be the first to review this product

Quick Overview

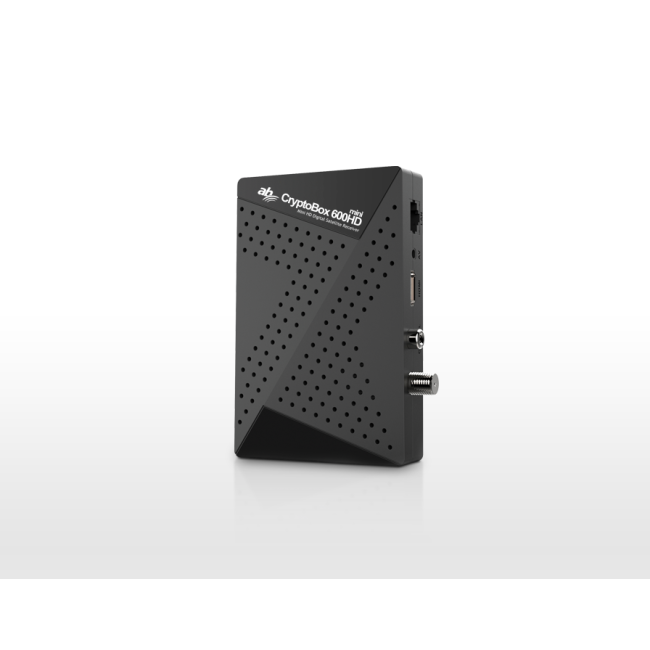

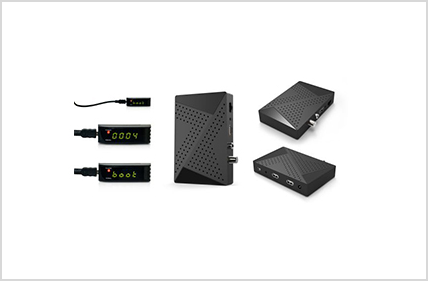

AB CryptoBox 600HD mini

The new model range satellite receiver AB IPBox in MINI design. The combination of digital satellite receiver and multimedia player in its Full HD 1080p resolution. Suitable for mounting in TV or in a hidden compartment. Routed IR sensor with numeric LED display and the on / off. IPTV Stream, Stream videa- watch live video and control receiver on Android and iOS devices, multimedia playback videos, pictures and music. Recording programs in the realm time, a simple time recording via EPG guide or TIMESHIFT time shift in recording. X-routes panel with loads of features: many games, FTP Downloader, weather and RSS viewer messages, rate, stock index and many other applications. FTP Downloader for backup, restore and transfer files from USB to FTP or FTP to USB (setting, firmware, video, MP3 ...) Connectors: 2x USB 2.0, HDMI, Analog Audio / Video output jack of 3.5, optical SPDIF audio output, RJ45 LAN konktor, External IR sensor, external supply 220V / 12V. The receiver includes a bracket for mounting. (paste)

G-MScreen application for Android and iOS devices through which stream a live broadcast, you control the receiver, check EPG or set a timer recording of your favorite program can be found free in the Google Play Store and App Store

Regular Price: £65.00

Special Price Excl. Tax: £29.17 Incl. Tax: £35.00

Availability: Out of stock


Manual AB CryptoBox 600HD mini Comming soon

  • videosetup
  • videosetup
  • videosetup

Technical Specification

New Dual Core CPU 2 x 600 MHz Power max. 25W
New genetration High speed memory DDRIII Frequency range 950 MHz do 2150 MHz
IPTV – stream internet TV broadcast Video resolution 1080i/p, 720p, 576i/p, 480i/p
Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
FullHD resolution 1080p 7-segment Display
1x DVB-S / DVB-S2 tuner 7-day electronic guide
1x Card Reader Fast Scan
1x HDMI port Time Shift recording and PVR function
1x RS232 via jack PIG ( Picture in Graphic )
2x USB 2.0 FTP manager, games, weather, stock market information, networking capability and many more…
1x LAN RJ 45 Automatic PAL / NTSC conversion
Chipset: ALI3511 6000 TV / Radio Stations
Flash Memory: 8 MByte 26 the favorite groups
DDRII Memory: 128 Mbyte 26 the favorite groups
Signal Level -65 do -25 dBm 26 the favorite groups
LNB power and polarization Video AVI, MKV,TS, TP, TRP, MPG, MP4
Vertical: +13V/+14V, Picture JPEG, BMP, GIF
Horizontal: +18V/+19V


Standard ISO/IEC 13818-2 (MPEG1,MPEG-2 MP@ML,H.264, VC1, DV, DivX, and MPEG4)
Aspect Ratio 4:3, 16:9
Video Full Resolution 1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video, 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video, dual MPEG-1, MPEG-2 and MPEG-4 decode for SD resolution,MPEG4 AVC / H.264 and VC1 decode for dual SD and single HD up to 720p and 1080i and 1080p
Video Format PAL, NTSC
Video RAM 128 Mbytes
HDMI output 480p&480i,576p & 576i, 720p&1080i50Hz,1080P50Hz
Host Supplied Audio/Video I & P frame support
Format conversion Pan & Scan, Letterbox
Video planes 2 panes (1 graphic planes, 1 display planes)


Standard ISO/IEC 13818-3 (Decoding: MPEG-2 layer I and II (Musiccam),MPEG4 AAC and MPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up to 640 Kbits/s, LPCM up to 48 KHz,MP3)
Sampling Frequency 32, 44.1, 48KHz
Audio Output Impedance Low
Output Mode Mono, Dual-channel, Stereo, Left, and Right

Front Panel

DVB LNB input and output F-type – Female
Display 7-segment
USB port 1 x
CA slot 1 x
HDMI Output 1 x
RJ45 1 x
RS232 1 x via jack


Chipset ALI35011
Flash Memory 8 MByte
DDRII Memory 128 Mbyte 800Mhz
USB2.0 1 x
RJ45 1 x


Input Frequency 950 ~ 2150MHz
Input Level -65 ~ -25dBm
Input Impedance 75Ω
LNB Polarisation 13V/18V/OFF, Imax = 400mA
LNB Switching 22KHz DiSEq C 1.0/1.2
Demodulation QPSK ,8PSK
Reed-Solomon 204, 188, t = 8
Roll Off Factor 0.35,0.25
FEC 1/2, 2/3, 3/4, 5/6, 7/8, Automatic
Symbol Rate 2.0~45 MS/s
DVB Standard DVB-S/S2 (EN300 421)


Power Supply Smps,Input AC 100 ~ 240V, 50/60Hz; Eureapean plug
Power Consumption Max 25W
Ambient Operation Temperature 0 ~ 40℃
Product size 280*233*55mm
Gift box size 296*76*310mm
CE, RoHs, EuP LPC
