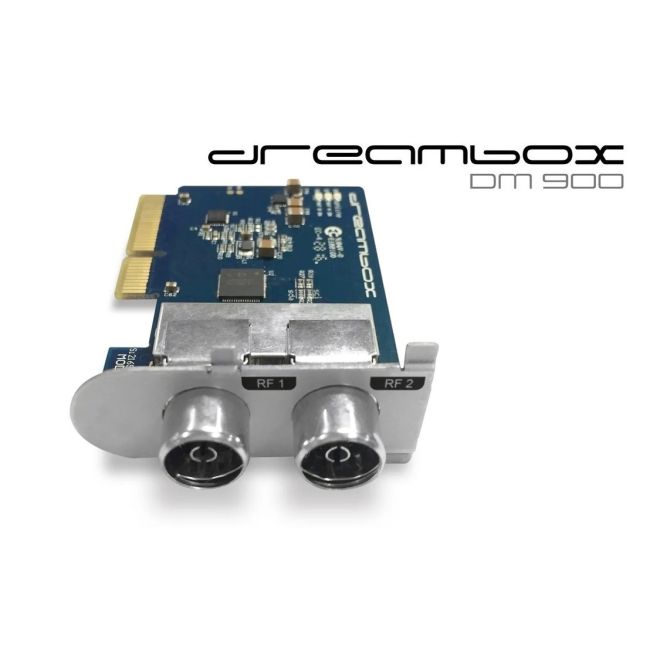

The new Dreambox Twin Silicon DVB-C/T2 tuner is compatible with the Dreambox models DM 900 4K
The plug-and-play tuner features two DVB-C/T2 inputs and is simply inserted into the designated slot. The Dreambox automatically recognizes and configures the new tuner upon the next power-on. Further settings can then be adjusted in the Dreambox menu.
The new Twin Silicon DVB-C/T2 tuner supports all common standards. Silicon Labs' new twin DVB-C/T2 tuner design enables not only blind scans with the Dreambox, but also channel scans at unprecedented speeds. Even when the tuner is supplied with TV and radio signals via a single cable, programs from one transponder can be recorded while others are watched simultaneously.
The new twin DVB-C/T2 tuner design from Silicon Labs not only allows for blind scans with the Dreambox, but also channel searches at previously unattainable speeds.
Features:
Small dimensions
Low heat generation
Low power consumption
Latest driver technology
Very fast channel search
Blind Scan function
DVB-C/T2 Dual Tuner compatible with:
DM 900 4K
Technical Specifications:
Single-chip two-channel RF-to-baseband satellite receiver
Integrated RF switches
CMOS fully integrated RF front end
Low noise and wide dynamic range zero-IF receiver
Input frequency range: 900 to 2200 MHz
Input signal level: -80 to 0 dBm
More than 80 dB gain control range
Fully integrated PLL (dividers, charge pump, phase and frequency detectors, loop filters, etc.)
