Geo-Sync Wideband LNB for SKY Q & Freesat

Includes Sky Compatible Bracket & Level

The GeoSync GW2LB Wideband LNB has been specifically designed for use in the UK with a 10.41GHz Local Oscillator to make it compatible with both the Sky-Q and Freesat 4K receivers. The GW2LB has two outlets, one carrying all the horizontally polarized signals and the other the vertical. Both outputs need to be connected to the receiver.

Main features:

  • Fitted with a bracket with spirit level for Mk4 elliptical dishes
  • Wide neck helps align at the focal point of the dish.

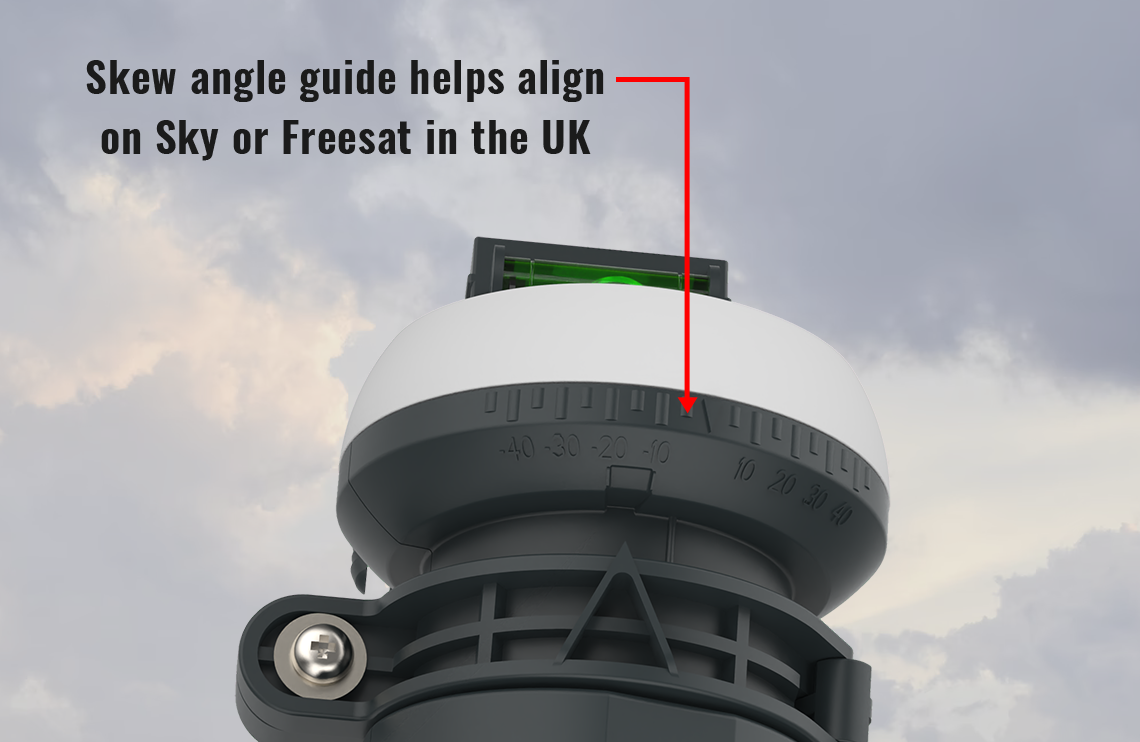

  • Skew angle guide helps align on Sky or Freesat in the UK
  • Signal quality improved with patent feedhorn design
  • Pull-down weather shield keeps rain away from cable connections
£19.95
Availability: In stock
SKU
KLPA/LNB-GW2LB
  • Buy 2 for £19.00 each and save 5%
  • Buy 5 for £18.00 each and save 10%

Geo-Sync Wideband LNB - Twin LNB Outputs SKY Q Compatible

Includes Sky Compatible Bracket & Level The GeoSync GW2LB Wideband LNB has been specifically designed for use in the UK with a 10.41GHz Local Oscillator to make it compatible with both the Sky-Q and Freesat 4K receivers. The GW2LB has two outlets, one carrying all the horizontally polarized signals and the other the vertical. Both outputs need to be connected to the receiver.

section2_img
section3_img
section4_img
section5_img
section6_img

Product Specifications

  • Input Frequency Range: V & H 10.7 - 12.75GHz
  • Input Feedhorn: Optimised for offset dish
  • Output Frequency Range: V & H 290 - 2340MHz
  • Output VSWR: Typical 950-2150MHz 2.0:1
  • Output type/impedance: F-Connector female 75Ohm
  • Local Oscillator Frequency: For UK only 10.41GHz
  • Local Oscillator Stability: Typical @ 25ᵒC ±1MHz
  • Phase Noise @
  • 1kHz @ 25ᵒC -60dBc/Hz (Max)
  • 10kHz @ 25ᵒC -80dBc/Hz (max)
  • 100kHz @ 25ᵒC -90dBc/Hz (Max)
  • Conversion Gain: Typical @ 25ᵒC 48 - 60dB
  • Gain Flatness: Typ. over any 26MHz Band ±0.5dB
  • Noise Figure: Typical 0.6dB
  • Cross Polar Isolation: Minimum 22dB
  • Image Rejection: Minimum 38dB
  • Current Consumption: Maximum 120mA
  • RED Standard: EN 303372-1
