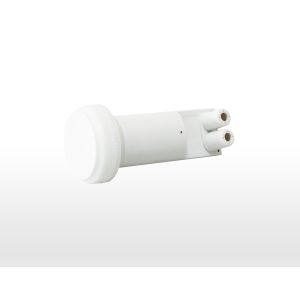

Inverto® Pro Wideband 40mm LNB For Sky Q - 4K UHD

Be the first to review this product

Quick Overview

For Sky Q, suitable for existing dishes from minimum MK4 Zone 1/2 or greater.


Manufactured to the highest industry quality standards and designed to meet strict specifications, this LNB is an ideal solution for a cost-effective reception of one satellite and its distribution to multi-tuner home gateways or to compatible Unicable II™ (dCSS) wideband multiswitches.

Excl. Tax: £17.92 Incl. Tax: £21.50

Availability: In stock

Details

Inverto® Pro Wideband 40mm LNB For Sky Q - 4K UHD

Specifically designed to meet the increasing demand of DTH operators for lower cost MDU and Multi-tuner Home Gateway installations.

This professional wideband LNB is based on a single 10.41 GHz local oscillator, delivering outstanding RF performance over the entire frequency range (L-band) and for the signals at the two output ports for the vertical and horizontal plane combined with a greater immunity against terrestrial/4G interferences.

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure
  • Low power consumption
  • High Cross Polarisation Isolation
  • High Frequency stability
  • Greater immunity against 4G interferences

Technical Specifications

Input frequency range 10.7 GHz ~ 12.75 GHz
IF frequency range 290 MHz ~ 2340 MHz
Noise figure 0.7 dB typ. (1 dB max.)
LO frequency accuracy @ 25° C ±1 MHz
LO temperature drift ±2 MHz
LO phase noise @ 10 kHz -80 dBc/Hz max.
Conversion gain 50 dB ~ 60 dB min.
Gain variation (over full band) ±0.5 dB @ 27 MHz
Image rejection 40 dB min. (8.05 GHz ~ 10.1 GHz)
1 dB compression point (@ output) 0.0 dBm min.
Cross polarization isolation 25 dB min.
Output VSWR 2.5 : 1
In band spurious level -60 dBm max.
Current consumption 150 mA max. @ 11 V ~ 20 V
Operating temperature -30 °C ~ +60 °C
Output impedance 75 Ω
Output connector type F-Type (female)
Weight 110 g

Additional Information

free formuler shipping No
