MECOOL KS3 UHD 4K Android Google TV 12 Soundbar 4GB + 32GB,
Netflix 4K, Disney+ Prime Video, Dolby Vision
Improve your TV audio and 4K streaming, all in one
MECOOL KS3 UHD OTT soundbar is the powerful 2-in-1 upgrade with 4K streaming and quality sound for any TV. Say goodbye to "high sounds but Low talking " You’ll be amazed at how it can improve the experience with watching your favourite contents.
More Immersive Experience
Dolby Atmos and Dolby Vision makes you feel like you are inside the action. Revealing depth, clarity, and details like never before.
Smarter Home
Enjoy built-in stunning Android TV 12.0 system with more than 400,000+ movies and shows across streaming
services, controlling with your voice, casting contents to TV, and more.
Lifelike 4K Streaming
Stream your favourite movies or shows in 4K HDR quality. Enjoy a vivid visual experience.
Powerful Capacity
Hear More Clearly
Adds-on devices can easily connect KS3 via Bluetooth to enhance entertainment

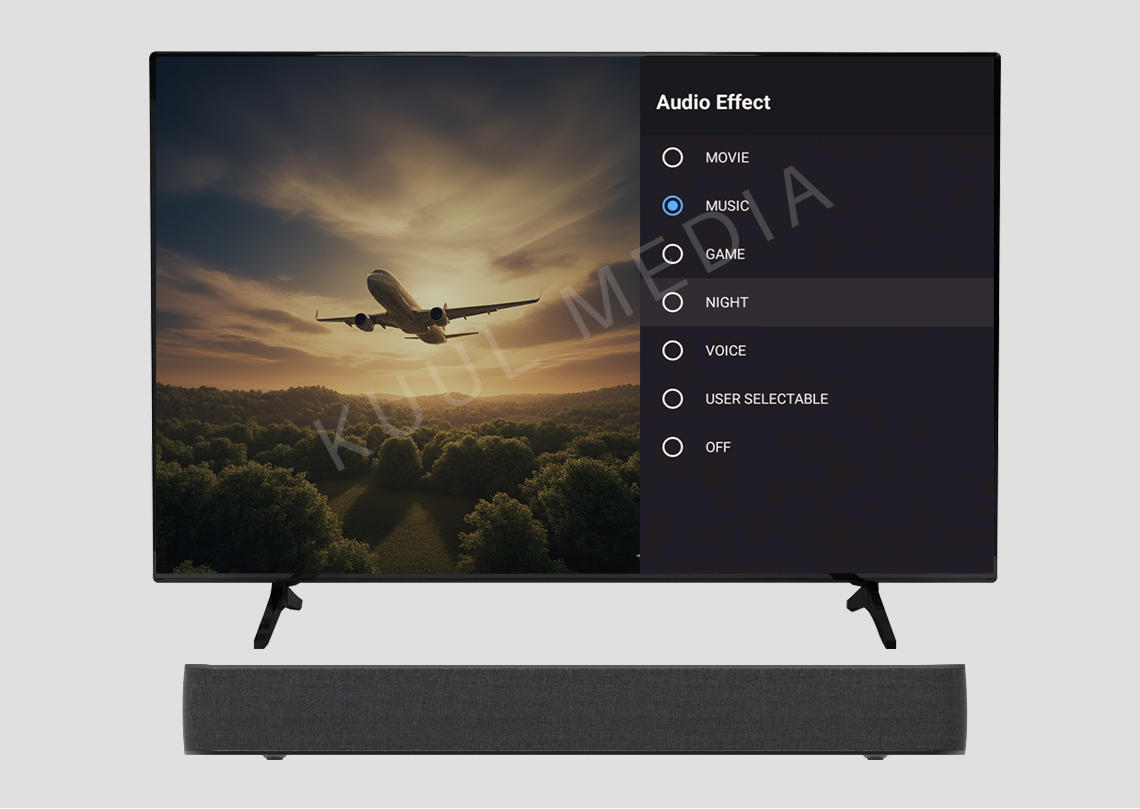

Customisable Voice Mode
Fine-tune your sound for different usage scenarios

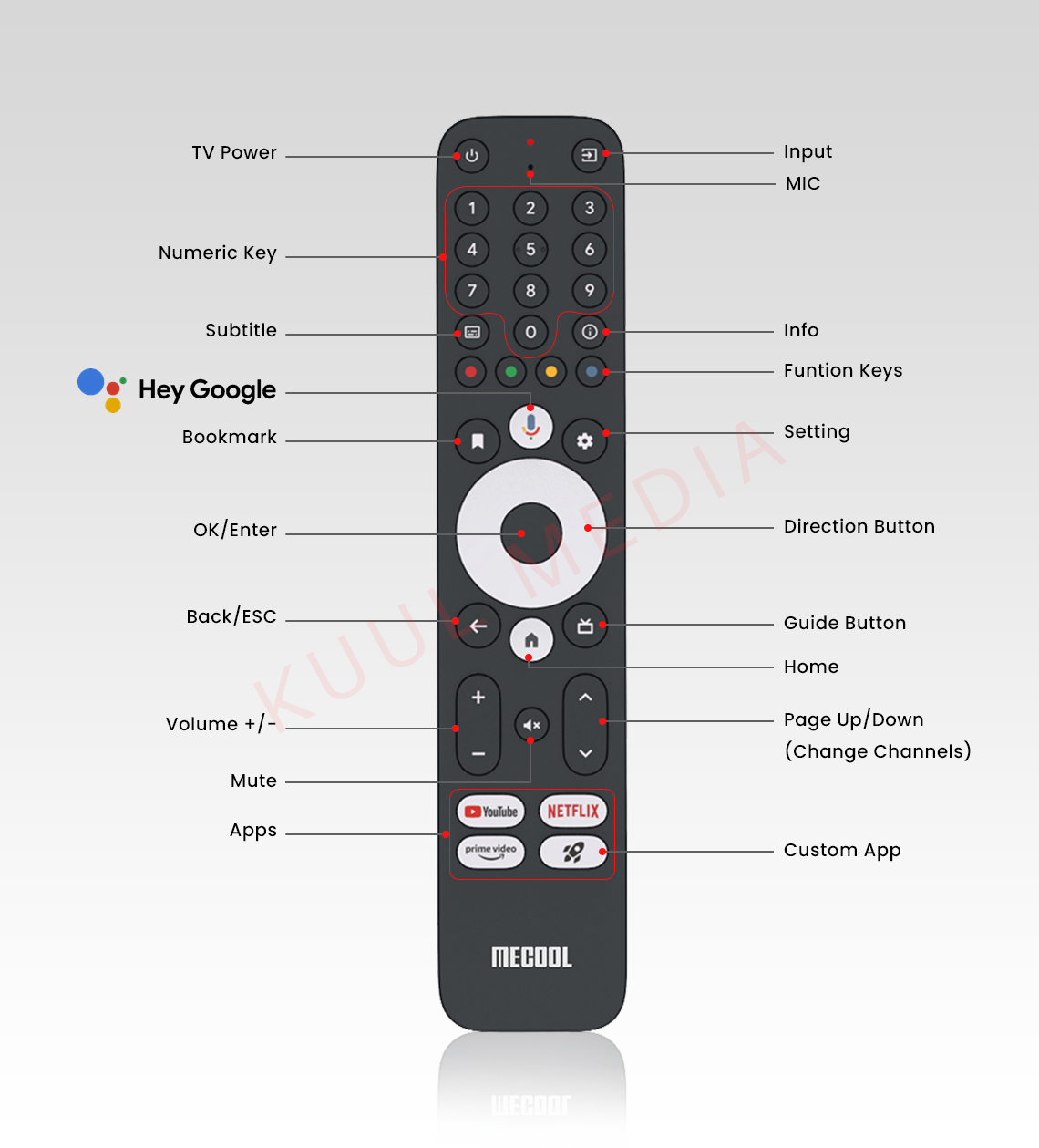

BLE5.0/4.2 with voice control
D-Pad Navigation
Shortcut keys of specific applications
Supporting users’ custom app shortcut
Android Device
Compatible Number keys
4.1-CH SURROUND SOUND: HEAR EVERY DETAIL, FROM EVERY ANGLE
Dolby Atmos and Dolby Vision Supported, with Android TV OS Built-in, enjoy Google Play and connect your phone, tablets via Chromecast! Voice enabled 'Ok Google' and Stream in 4K HDR quality across your favorite service including Netflix, Prime Video, Disney+ and much more!
Connectivity includes: 2T2R wifi5, 100 Lan, Bluetooth 5.0, HDMI eARC, USB 3.0.

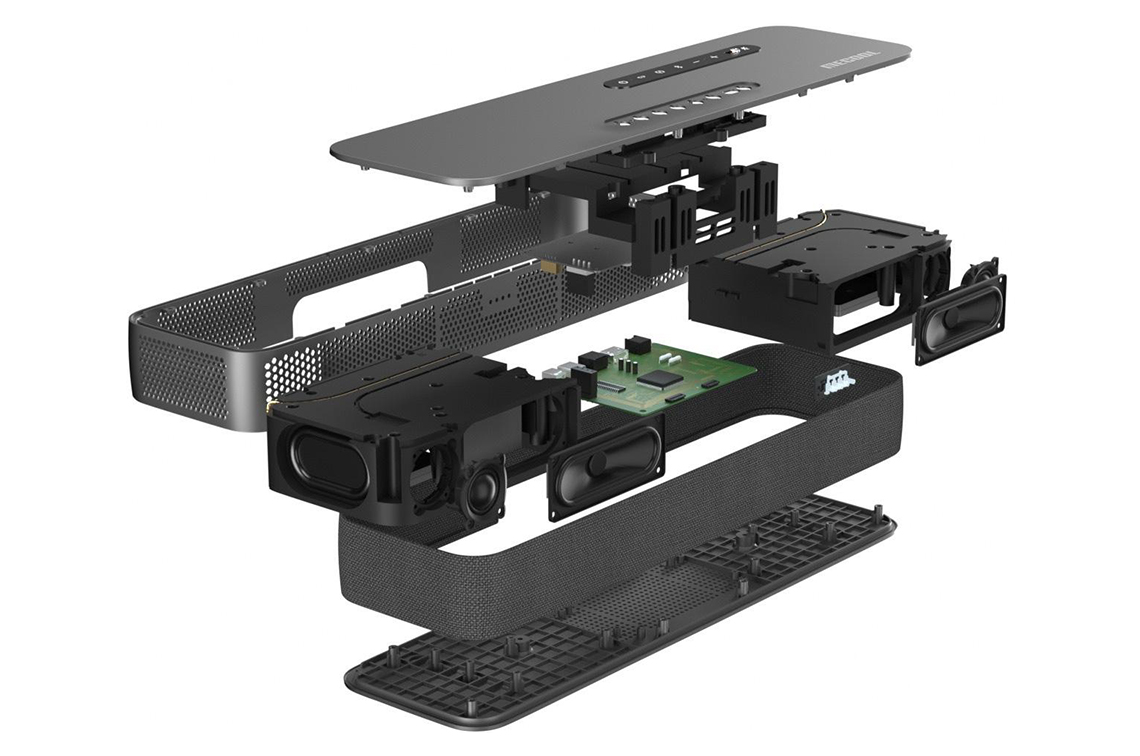

Hear bigger with 8 speakers built-in KS3 UHD OTT Soundbar..

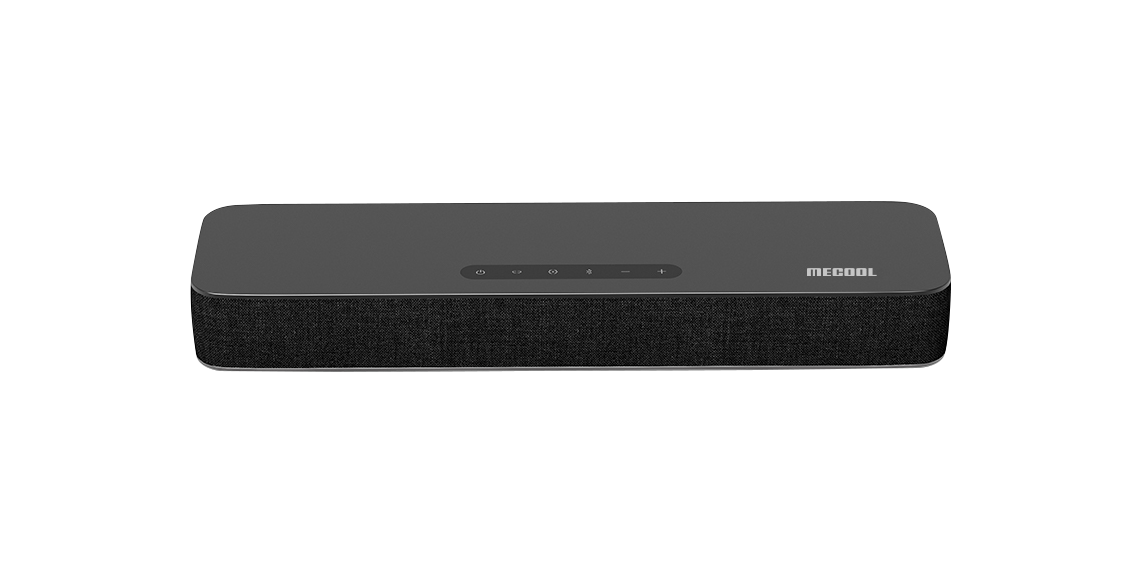

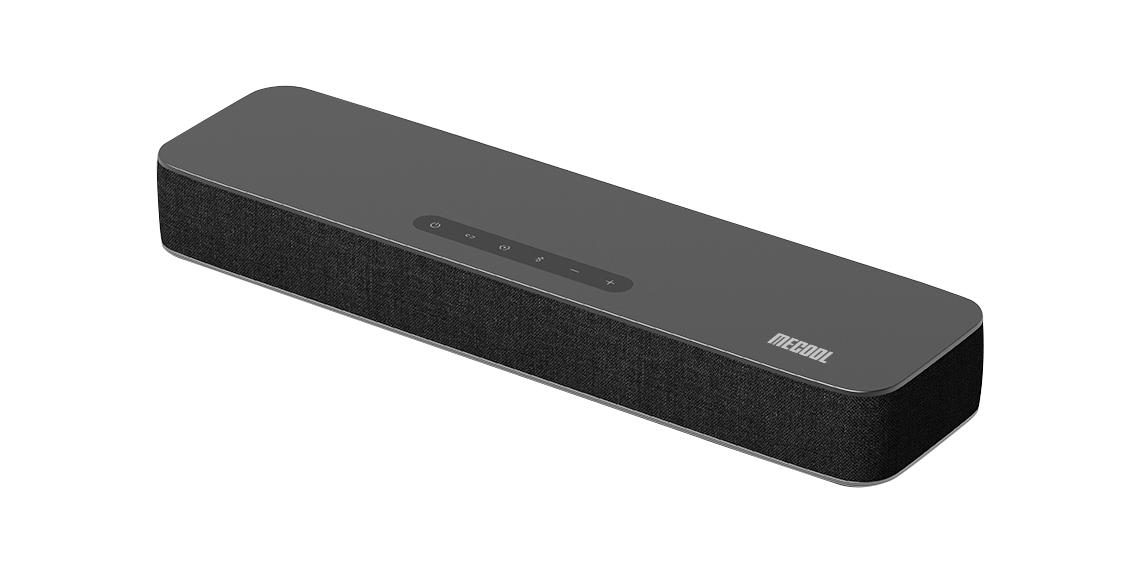

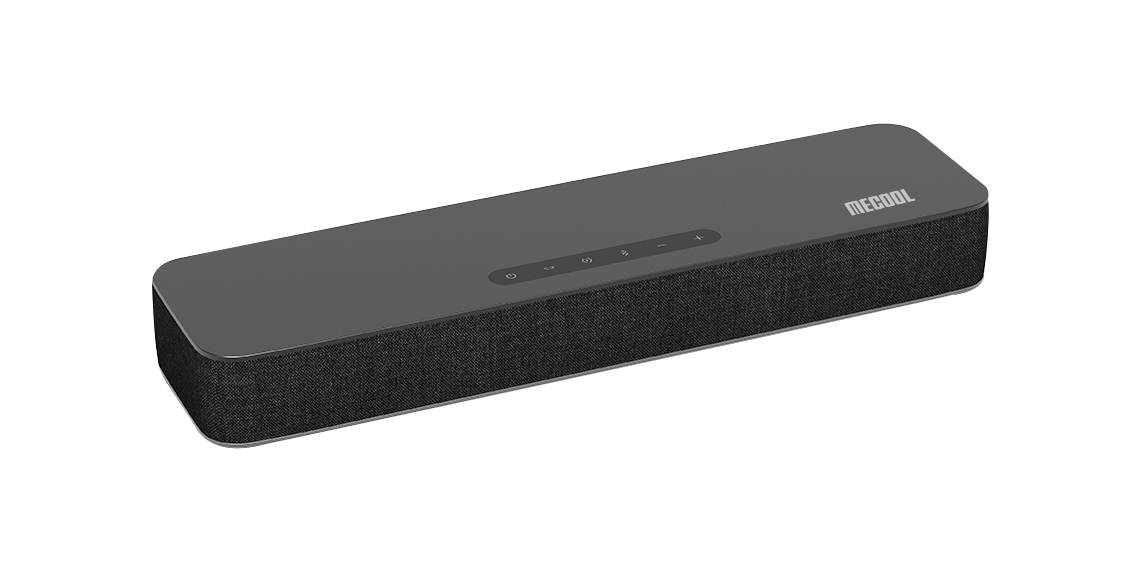

MECOOL KS3 SOUNDBAR

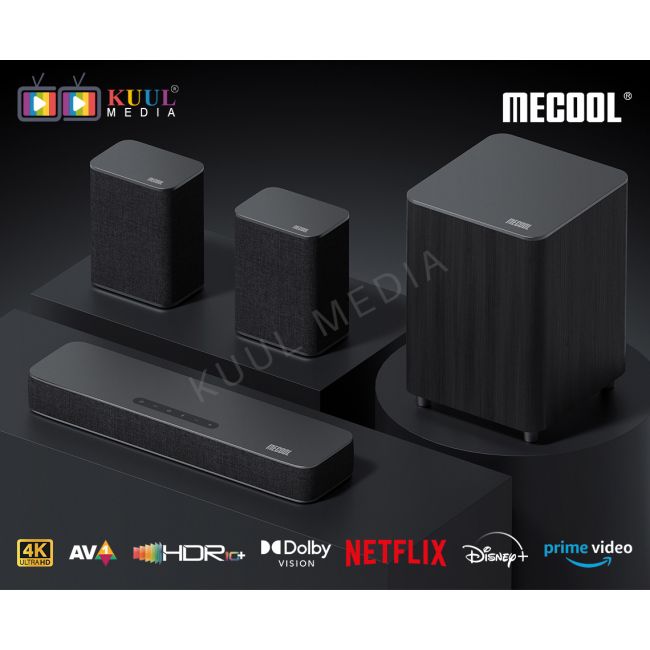

Select MECOOL KS3 UHD OTT Soundbar ONLY OPTION Or

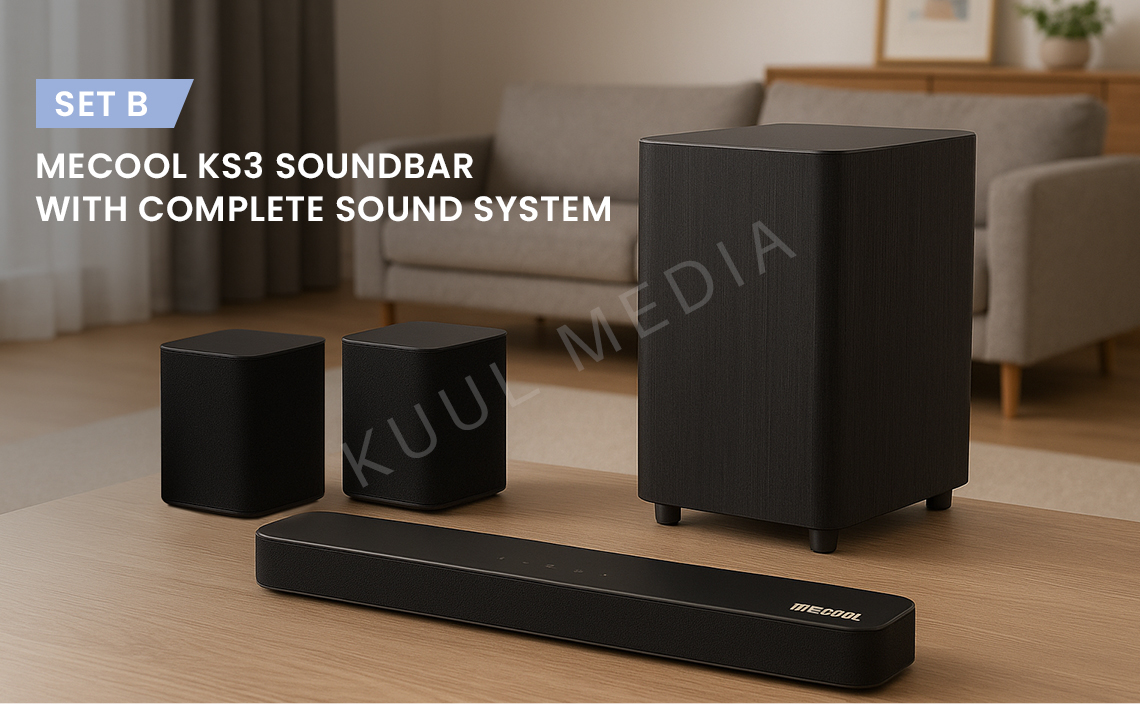

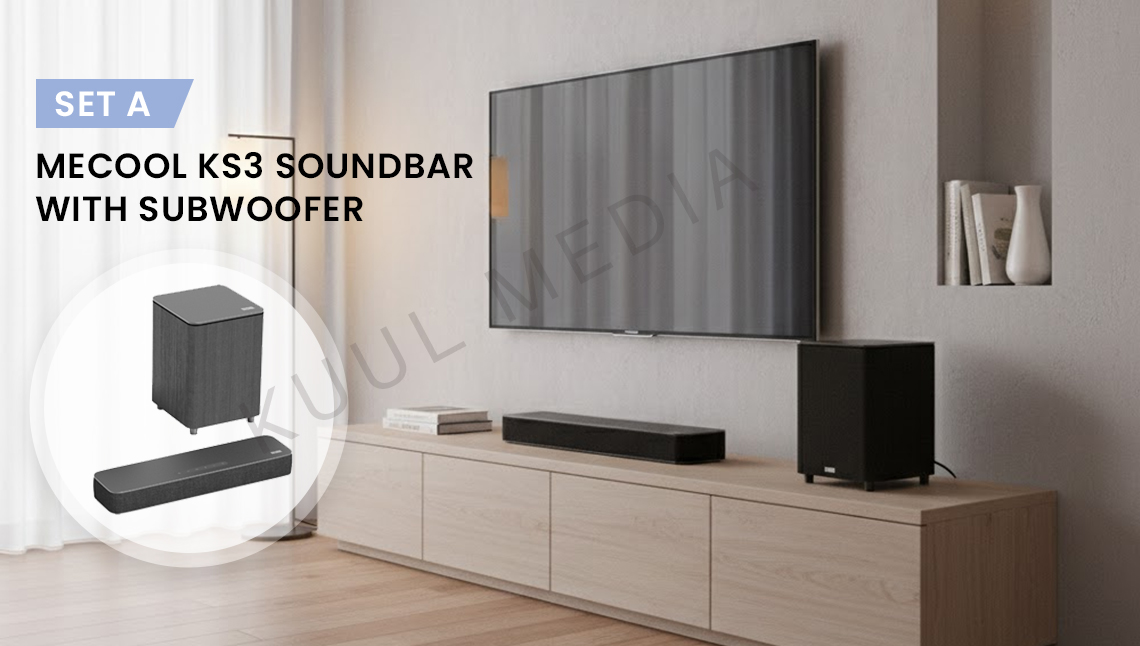

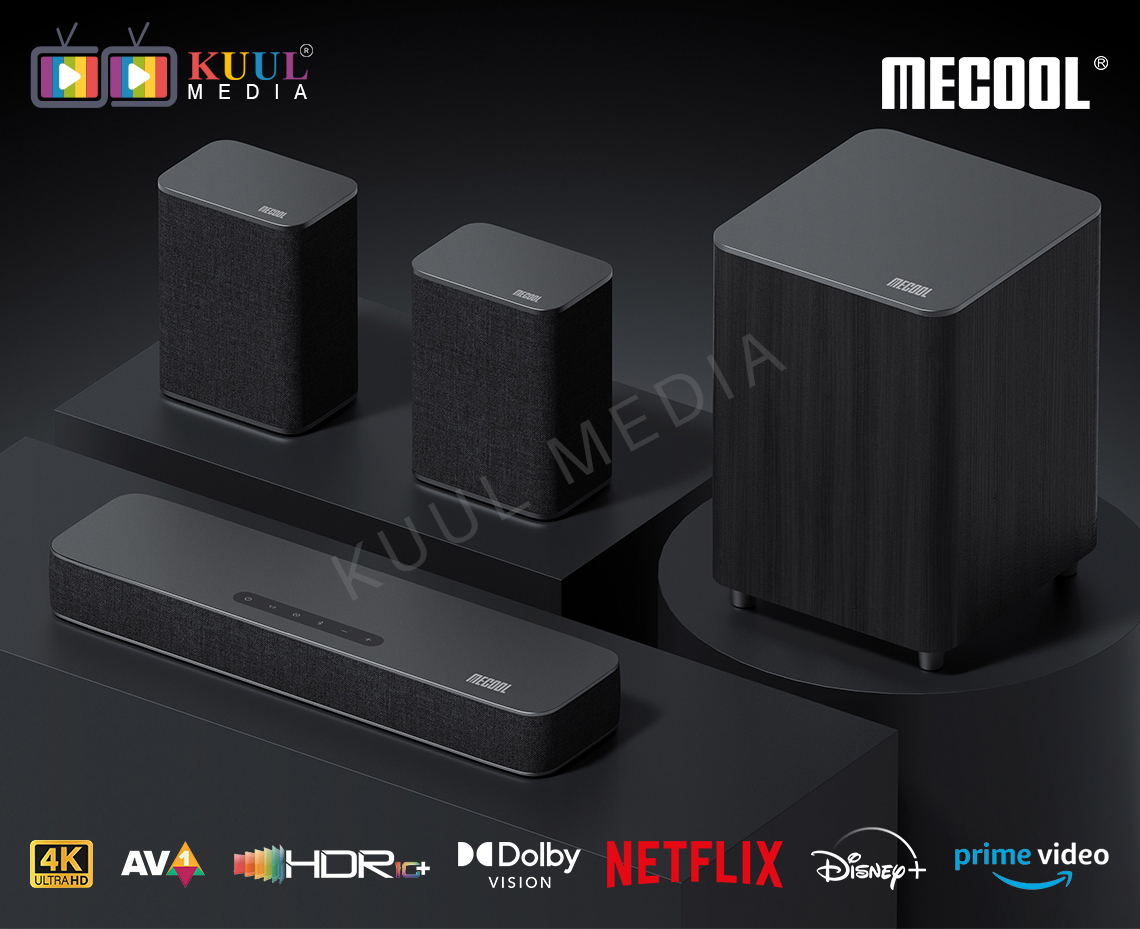

'SET A - MECOOL KS3 UHD OTT Soundbar + Subwoofer' OPTION Or 'SET B - MECOOL KS3 UHD OTT Soundbar Full Surround Sound System'.
PRODUCT SPECIFICATIONS
SOUNDBAR SPEAKER
1. MID-LOW RANGE DRIVER
Size: 100*40mm × 2pcs
mpedance: 6ohm
Power: (Nom./Max.): 15W/18W
SPL: 82+/-3dB @1m/1W
Resonance Frequency: 150Hz+/-20%Hz
Frequency Response: F0~10kHz, -10dB
2. TWEETER DRIVER
Size: 0.75inch × 2pcs
Impedance: 6ohm
Power:(Nom./Max.): 10W/12W
SPL: 85+/-3dB @1m/1W
Resonance Frequency: 1.65kHz+/-20%Hz
Frequency Response: F0~20KHz
3. SYSTEM PARAMETERS
Input voltage range :100-240V 50/60 HZ
Output Power: 40W
THD ≤ 1% @1W
Size：L490*W128*H60mm
Weight：2060g
5G WIRELESS SOUND EXTEND MODULE-OPTIONAL
Module for expanding wireless 4.1 channel audio system
Radio Frequency: 5.8/5.2 GHz unlicensed bands (optional)
Short Audio Latency: 19 ms (I2S to I2S @ 48K Fs)
Delay Time Variation + audio jitter is only +/- 6.5μsec (Total delay time variation is less than +/-2.5 degree @ 1K sine tone.)
High sample rate, high quality audio (24bits*48K),
I2S-I2S SNR exceeds-140dB

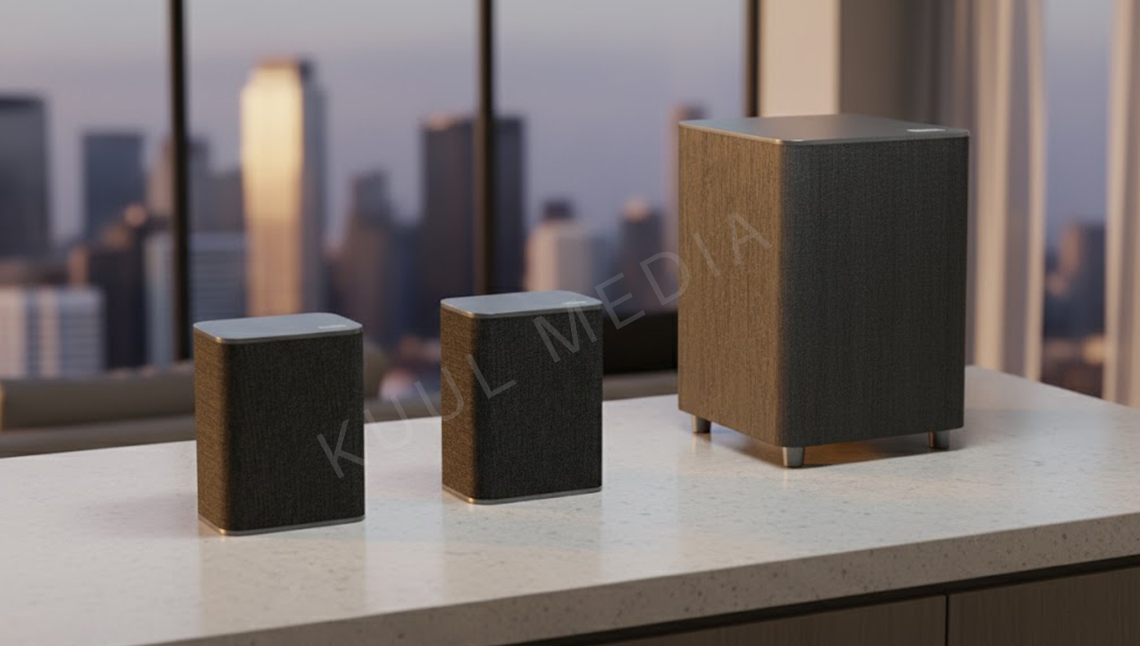

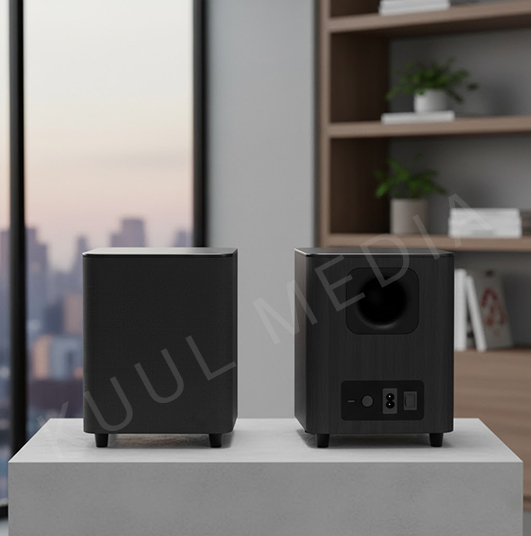

SUBWOOFER SPEAKER (X1) – OPTIONAL
1. MID-LOW RANGE DRIVER
Size: 5.25inch × 1pcs
Impedance: 4ohm
Input Power: (Nom./Max.): 60W/80W
SPL: 82+/-3dB @1m/1W
Resonance Frequency: 60Hz+/-20%Hz
Frequency Response: F0~5kHz, -10dB
2. SYSTEM PARAMETERS
Input voltage range: 100-240V 50/60 HZ
Output Power: 50W
THD ≤ 1% @1W
Size: L212.8*W200.1*H293.8mm
Weight: 3724g

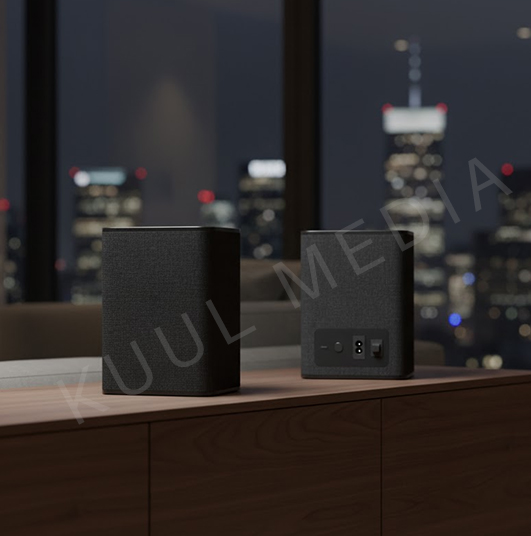

SURROUND SOUND SPEAKERS
(X2)-OPTIONAL
1. DRIVER
Size: 2.25inch × 1pcs
Impedance: 6ohm
Input Power: (Nom./Max.): 15W/20W
SPL: 82+/-3dB@1m/1W
Resonance Frequency: 170Hz+/-20% Hz
Frequency Response: F0~20KHz,-10dB
2. SYSTEM PARAMETERS
Input voltage range: 100-240V 50/60 HZ
Output Power: 2 × 7.5W
THD ≤ 1% @1W
Size: L145*W104*H193mm
Weight: 1138g

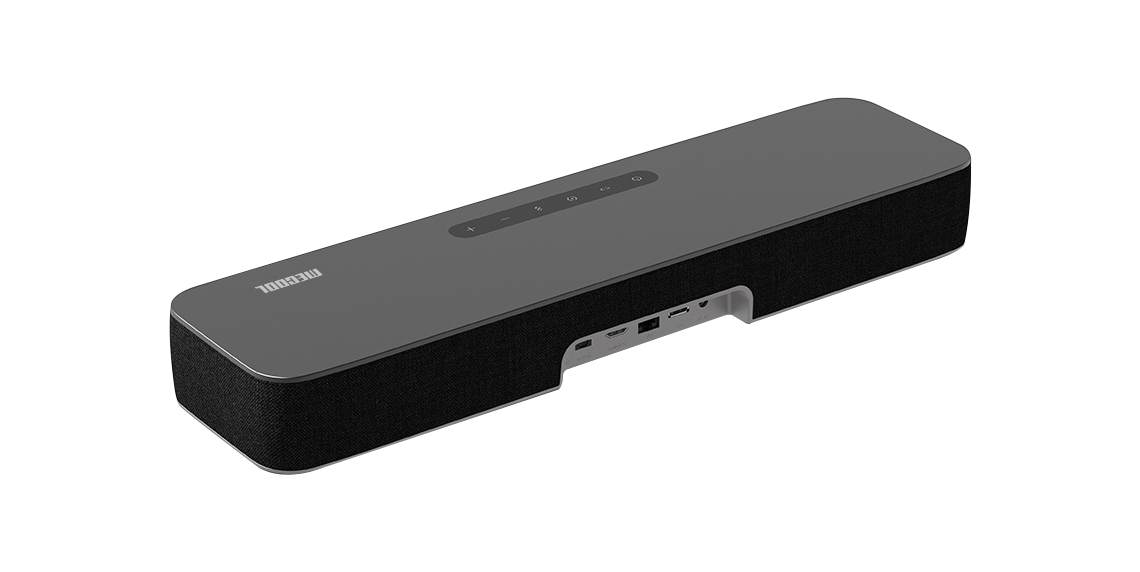

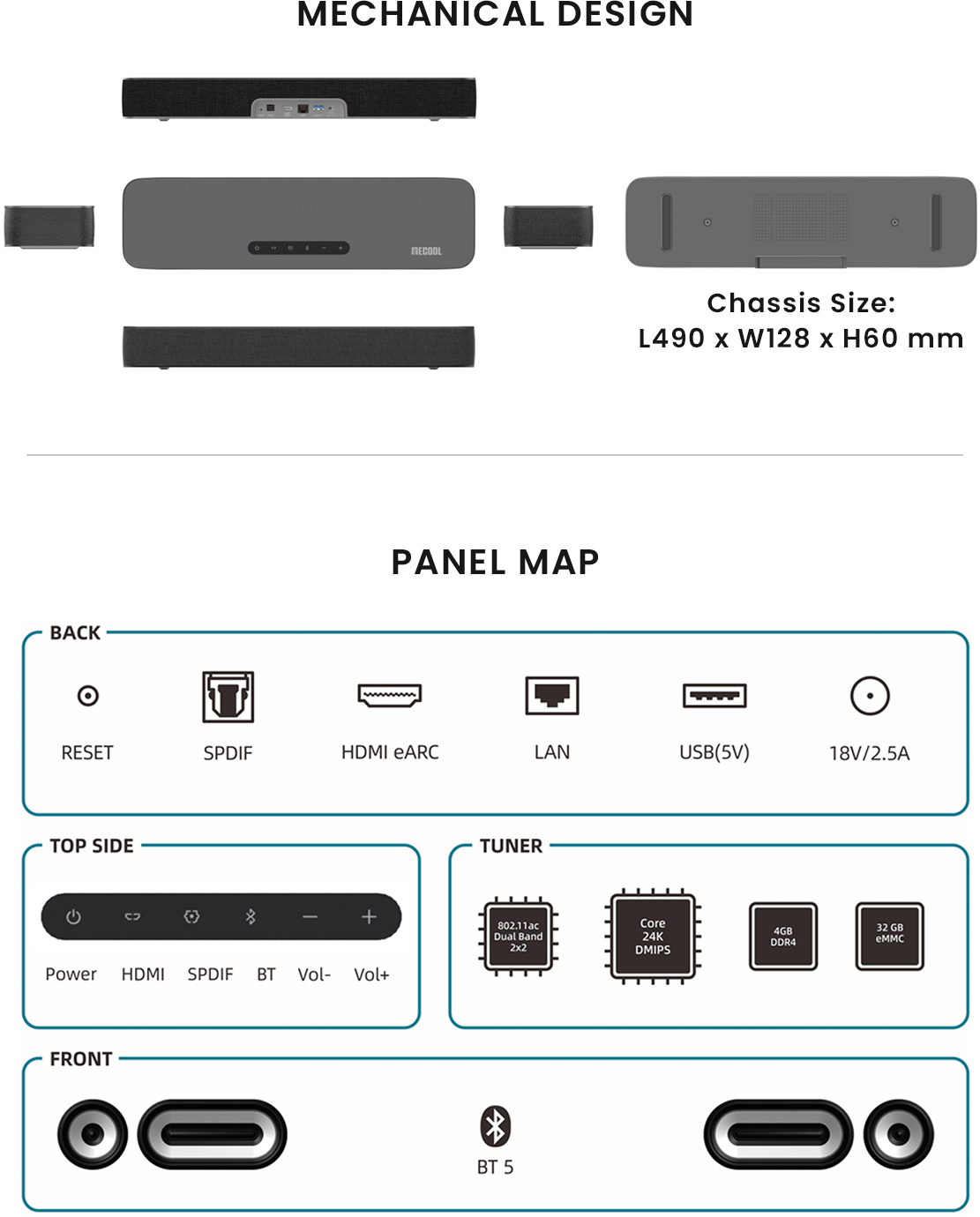

INTERFACE
1x DC IN (18V/2.5A)
1x HDMI 2.1 + eARC HDCP 2.3
1x USB 3.0 • 1* SDPIF IN
1x RJ45 100M LAN
1x Reset
ACCESSORIES
1x Adapter 18V 2.5A
1x HDMI 2.0 Cable 1.5m
1x BT & Voice RCU
1x Instruction Manual
1x Warning Card
LANGUAGE
Android system language (up to more than 40 languages)
Whats In the Box
MECOOL KS3 SOUNDBAR ONLY OPTION
Mecool KS3 UHD OTT Soundbar
Remote Control
HDMI Cable
User Manual
Power Supply – U.K. Power Supply for U.K. Shipping OR E.U. For European Shipping
SET A OPTION
Mecool KS3 UHD OTT Soundbar
Remote Control
HDMI Cable
User Manual
Power Supply – U.K. Power Supply for U.K. Shipping OR E.U. For European Shipping
Mecool Subwoofer
User Manual
U.K. Figure 8 Power Lead. (E.U. Orders will have a E.U. Power Lead)
SET B OPTION
Mecool KS3 UHD OTT Soundbar
Remote Control
HDMI Cable
User Manual
Power Supply – U.K. Power Supply for U.K. Shipping OR E.U. For European Shipping
Mecool Subwoofer
User Manual
U.K. Figure 8 Power Lead. (E.U. Orders will have a E.U. Power Lead)
2x Mecool Speakers
User Manual
2x U.K. Figure 8 Power Lead. (E.U. Orders will have 2x E.U. Power Lead)
Disclaimer
Features listed here may require additional and/or periodic firmware updates. We are not responsible for third party firmware and features, addons, patches or third-party services and the availability of such services on this receiver (such as YouTube, etc.). Your warranty covers receiver hardware only and is not extended to software
updates or setup, we may however extend this at our discretion to offer support for FTA (free to air) reception where the service provider permits connection to their network. Note that Mecool does not come with any
channels, video content or portals pre-loaded. Google TV and related logos are trademarks of Google LLC. Netflix and its related logos are the trademarks of Netflix, Inc. Prime Video and related logos are the trademarks of Amazon Technologies, Inc.
