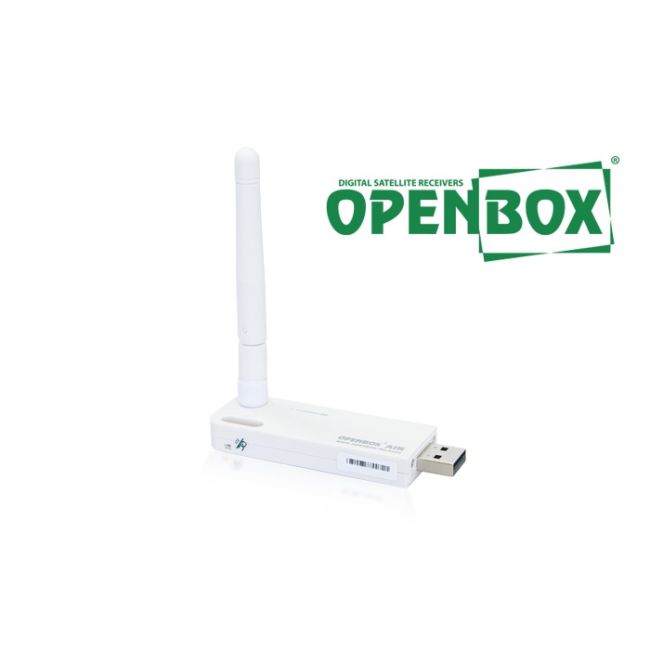

OPENBOX® AIR is a proprietary and 100% compatible USB adapter. With its help, your OPENBOX® set-top box will receive reliable and fast Internet access via a Wi-Fi network. The adapter is designed to exchange data between the receiver and the router (or the receiver and the computer) over wireless networks at a frequency of 2.4 GHz in accordance with the IEEE 802.11 n standard.
Compatible models: OPENBOX® S5, S7, S8, S4, S6, S6 Pro, S9, SX4, SX6, SX9, AS1, AS2, S2, S2 Mini, S3 CI, S3 Mini, S3 Micro and some set-top boxes from other manufacturers.
Main characteristics:
Modulation type: OFDM with BPSK, QPSK, 16QAM, 64QAM(11g); BPSK, QPSK, CCK (11b), 11n
Support for OS: Windows 2000, XP32/64, Vista32/64, Linux, Mac OS
Standard: IEEE 802.11 g; 802.11 b; 802.11 n
Interface: USB
Operating frequency range: 2.405 MHz - 2.485 MHz
Indoor range: up to 100 m, outdoor range up to 300 m
Data transfer rate: 11b 1/2/5.5/11 Mbps; 11g 6/9/12/24/36/48/54 Mbps; 11n 150Mbps, when using WEP or WPA (TKIP) authentication, it is limited to 54Mbps
Transmitter power 15dBm
In addition, this adapter can be used to connect your computer to a wireless Wi-Fi network. After installing the appropriate drivers (drivers are included on the CD), the adapter can work with Windows operating systems.
To increase the operating range and data transfer speed, the adapter is structurally equipped with a highly efficient external antenna. The kit includes a small stand that allows you to place the Wi-Fi adapter at a distance of one meter, in a convenient place for the user.
